Terraflex™ | Nano Carbon

$119.00
Shade
Roll Size
Include Warranty Cards?

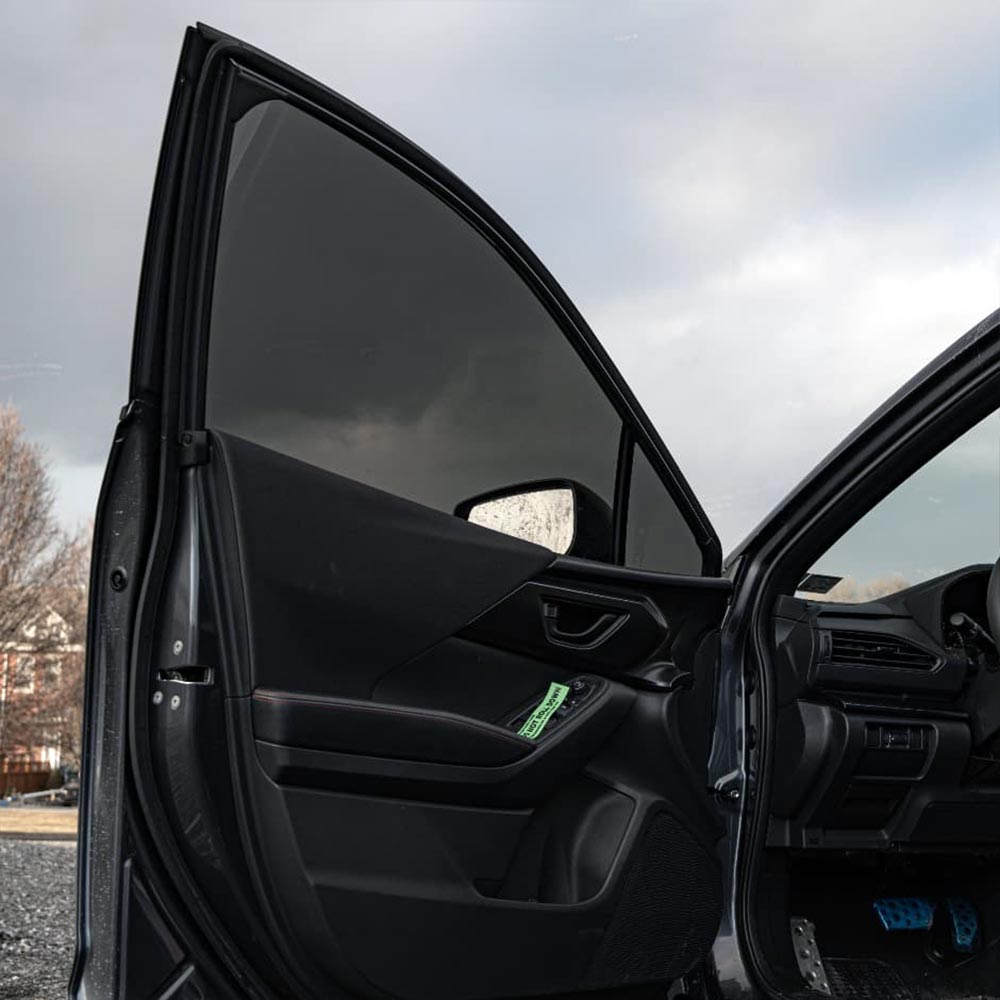

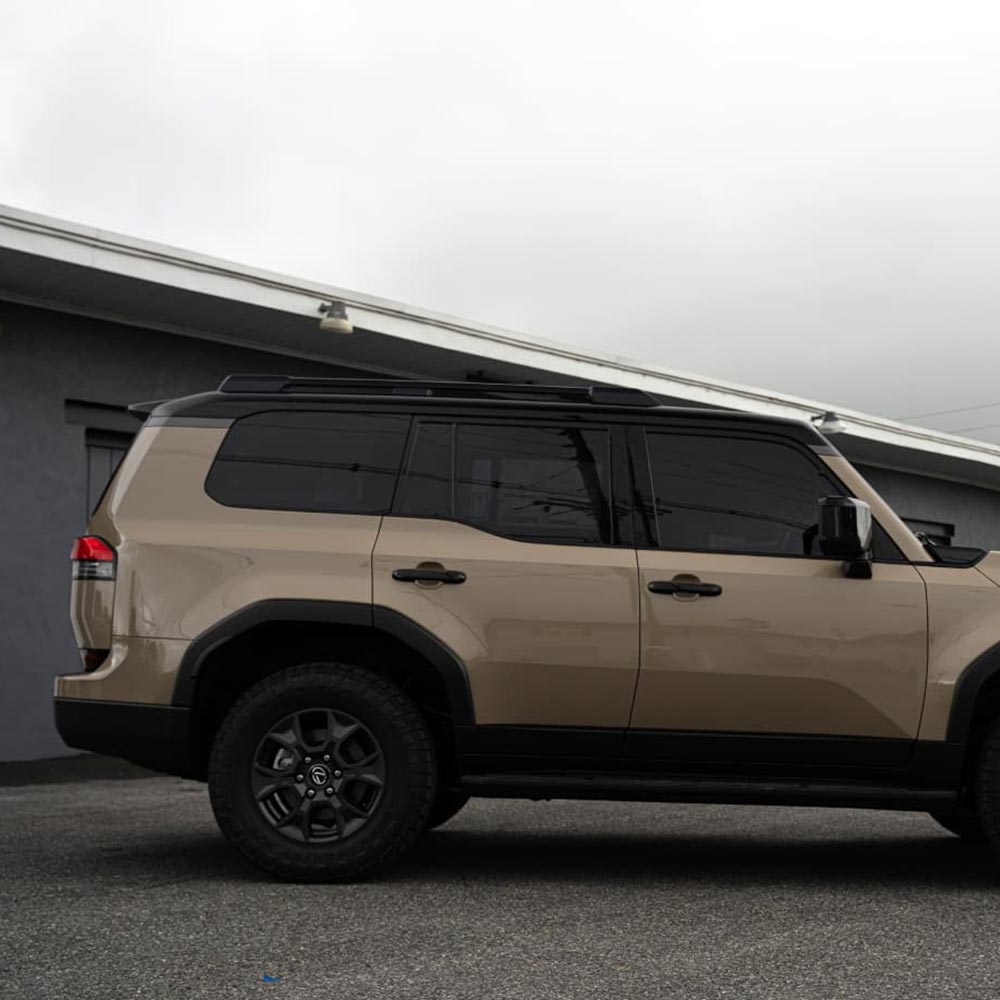

If you are concerned about fading, Terraflex™ is the product for you. Terraflex™ is a true carbon window film that is designed to not fade or change colors, unlike dyed window film. With its high infrared radiation (IR) rejection and ultraviolet (UV) protection, you will notice a substantial decrease in the heat that transmits into your vehicle. Terraflex™ boasts 99.9% ultraviolet (UV) protection and up to 60% infrared radiation (IR) rejection. Best of all, Terraflex™ is manufactured with zero dye. No fade. No color change.

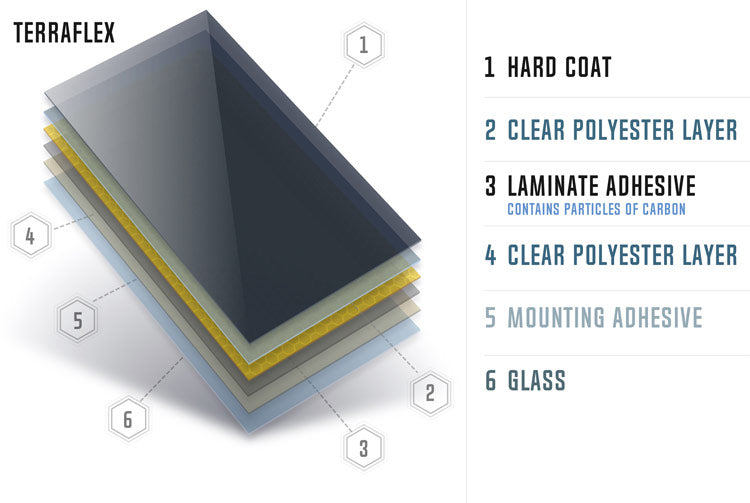

Terraflex™ is our carbon line of window film. Terraflex™ contains nano particles that gives the window film a boost in performance. The nano particles are found in the laminate adhesive layer and allows the film to block up to 60% of infrared radiation (IR) and 99% ultraviolet (UV) energy. The laminate adhesive layer contains double the glue compared to most other window films, which means a longer lasting product, while the hard coat is strong and durable.

Terraflex™ 5% 15% 20% 35% 40% 50%
Visible Light Reflected External 4.6 4.7 4.7 5.2 5.2 5.9
Internal 4.6 4.7 4.8 5.4 5.4 6.1
Solar Heat Transmitted 18.9 29.3 33.7 49.1 54.5 60.9
Reflected 4.6 4.8 4.8 5.6 5.5 6.1
Absorbed 76.6 65.9 61.5 45.3 40 33
IR Rejected 900-1000nm 74 61 56 41 36 31
780-2500nm 67 55 50 36 34 27
UV Rejected >99 >99 >99 >99 >99 >99
Total Solar Energy (TSER) 51 45 43 31 29 27
Shading Coefficient 0.53 0.59 0.62 0.76 0.78 0.82
Solar Heat Gain Coefficient (SHGC) 0.49 0.55 0.57 0.69 0.71 0.73
Thickness 1.5Mil/2Ply 1.5Mil/2Ply 1.5Mil/2Ply 1.5Mil/2Ply 1.5Mil/2Ply 1.5Mil/2Ply
